Seriekoppling/Parallellkoppling - resistorer

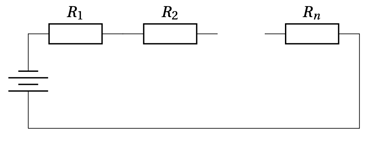

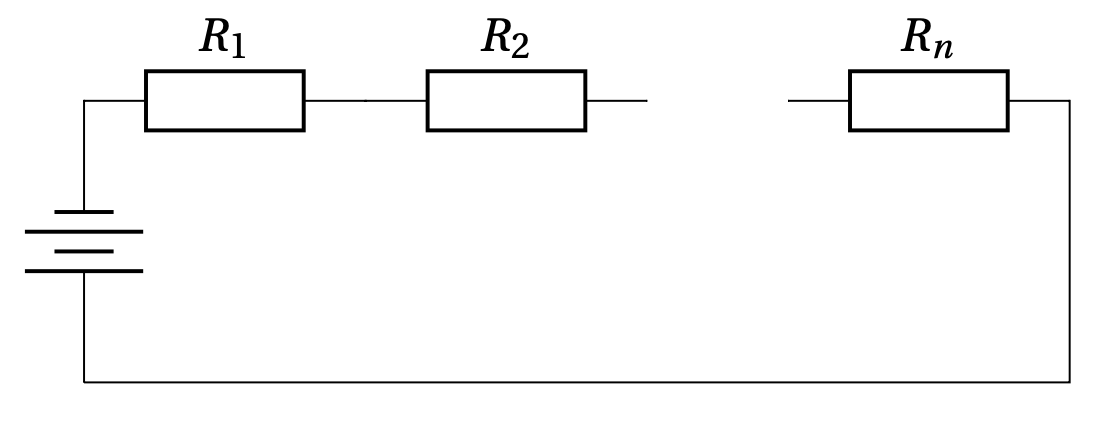

\[ R_{\text{ total}} = R_1 + R_2 + ... R_n \]

• \( R_{\text{ total}} \) = Total resistansen
• \( R_i \) = Del resistans i

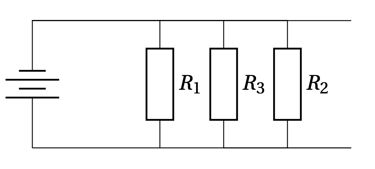

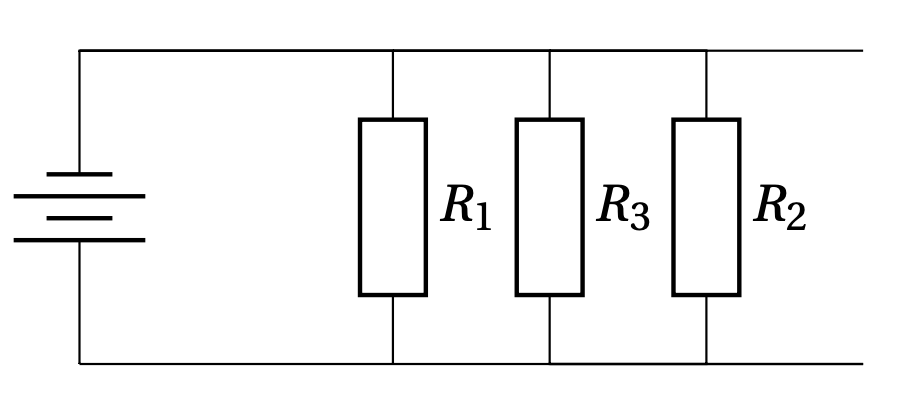

\[ \frac{1}{R_{\text{ total}}} = \frac{1}{R_1} + \frac{1}{R_2} + ... + \frac{1}{R_n} \]

• \( R_{\text{ total}} \) = Total resistans
• \( R_i \) = Del resistans i
